DFD
DFD1 The origional for single conversion and direct conversion radios. IF offsets to 16MHz in 1KHz steps.
DFD1A with IF offsets to 20.97MHz in 10Hz steps.
DFD1B with IF offsets to 209.7MHz in 100Hz steps.

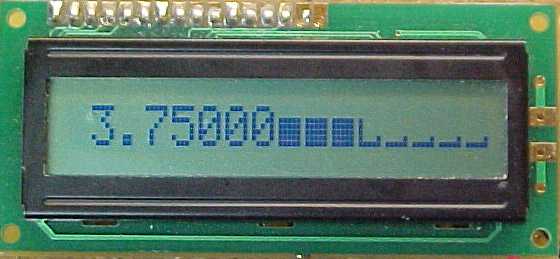

DFD1S with S meter display
DFD1-Hammarlund , programs itself for most Hammarlund radios.
DFD1-Swan for most Swan radios.
DFD1-Drake for the R-4 receivers
DFD2 for tuned IF receivers
DFD2-S for Collins S line, KWM-2/A, and KWS-1,
DFD2-301 for Heathkit SB series and HW series
DFD2-520 for Kenwood TS-520S/SE
DFD2-101 for Yeasu FT-101 (requires tapping signals from inside radio. Not for non-technical persons).
Use DFD3 with the FT-101 for easy installation.
DFD3 User programmable, 1-32 bands, seperate offset for each band accurate to 10Hz, SSB and CW offsets, EEPROM. PROGRAMS ITSELF FOR over 160 POPULAR RADIOS.
DFD4 with built-in prescalers.
DFD4A Usable as a bench top frequency counter to 3GHz.
| Which DFD should I use
with my radio? DFD Applications notes page how to connect to radio (If a kind customer has provided the info.) |
PRICES (Any DFD assembled for $20 additional which means I assemble the PCB and all components on it. No cabinet)
DFD1 (any version) is $59.95(includes TCXO)
DFD2 (any version) is $59.95 (includes TCXO)
DFD3 is $59.95 (includes TCXO)
Preamplifier $7.50
DFD4 or 4A is $59.95 (includes TCXO)
Biggy display option backlit is standard $20.00
NOW AVAILABLE, CUSTOMIZED TWO LINE BLUE BACKLIT DISPLAY

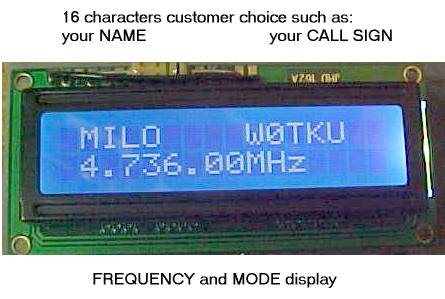

the top line is 16 characters of your choice such as name and call sign
(name and call sign shown are of my late father)
same size as the standard display.
add $15 to cost of any DFD for this option.
HOW TO ORDER
On-Line (click PayPal logo below)
By Phone with Visa/MasterCard
- Call between 9AM and 9PM Pacific time, 7 days)
- 253-351-9316 ,
By FAX with Visa/MasterCard
253-931-1940
By Mail Almost All Digital Electronics, 1412 Elm St. S.E., Auburn, WA 98092
Check out the APPLICATION NOTES page.
Digital Frequency Display kits are also available from:
YellowLED Backlit Display module now available.
This module is the same size as the non-backlit module and replaces it directly. You will have to supply a dropping resistor to set the current from your primary power source. The forward voltage drop of the LEDs is 4V and the maximum current is 200ma. The unit lites up pretty good with 30ma. At this setting it can be powered continuously from the on-board 5V regulator through a 33ohm 1/4 watt resistor. From 12V you need an 80ohm/2W resistor for 100ma, or a 160ohm/1W resistor for 50ma.
For LED backlit module instead of regular module add $7.50
(Send Check, Money Order or call/FAX with Visa/MasterCard)
Call between 9AM and 9PM Pacific time, 7 days)
Almost All Digital Electronics, 1412 Elm St. S.E., Auburn, WA 98092
Voice 253-351-9316 , FAX 253-931-1940, E-Mail neil@aade.com
AADE has an unconditional money bank guarantee even on kits (unless destroyed during assembly).
We have a free "we'll try to fix it if you just can't seem to get it to work" policy. ($4 return S/H charge)
We offer technical assistance from 9AM to 9PM Pacific time. (usually available on weekends)
