TS870 kenwood transceiver

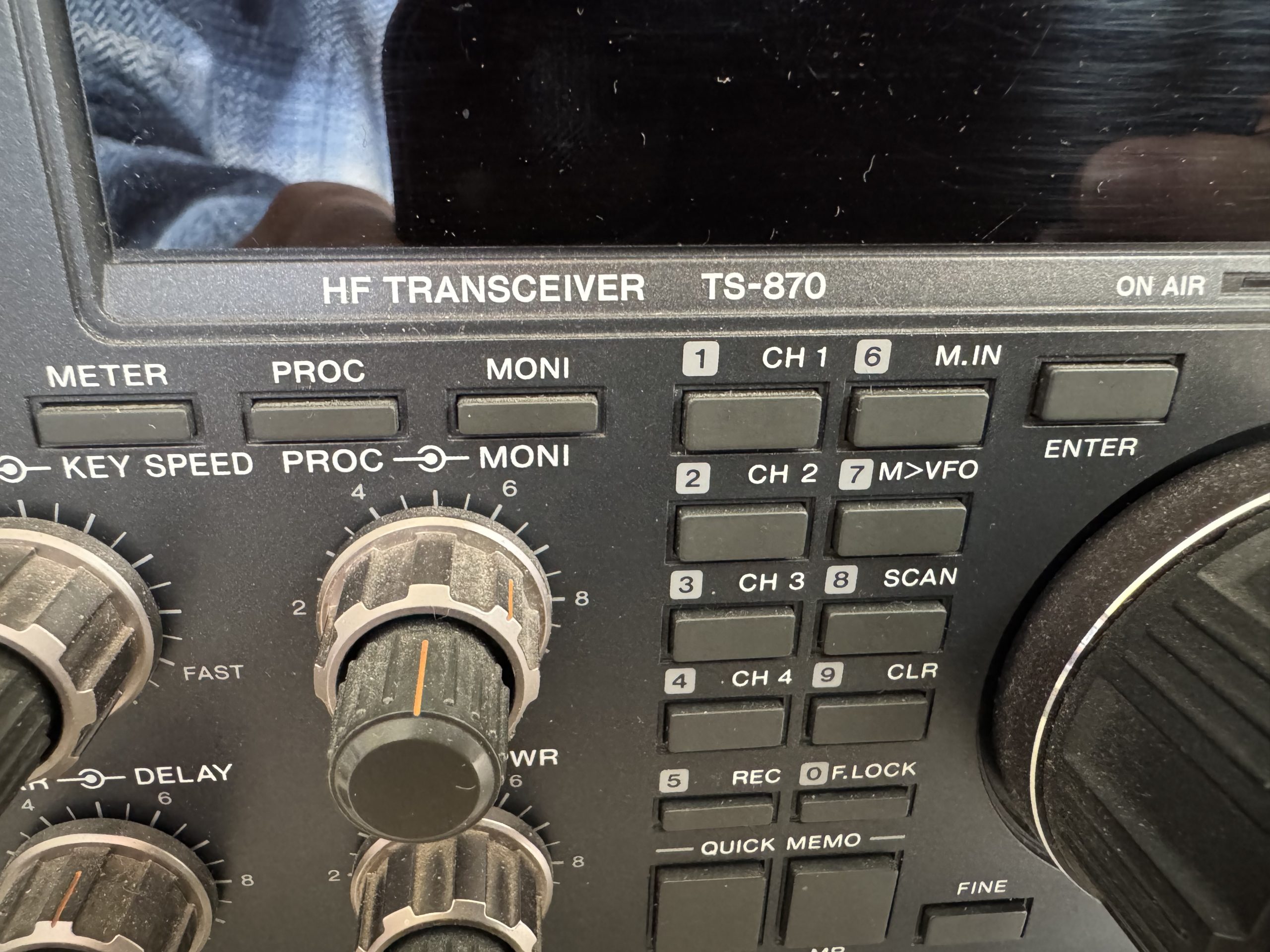

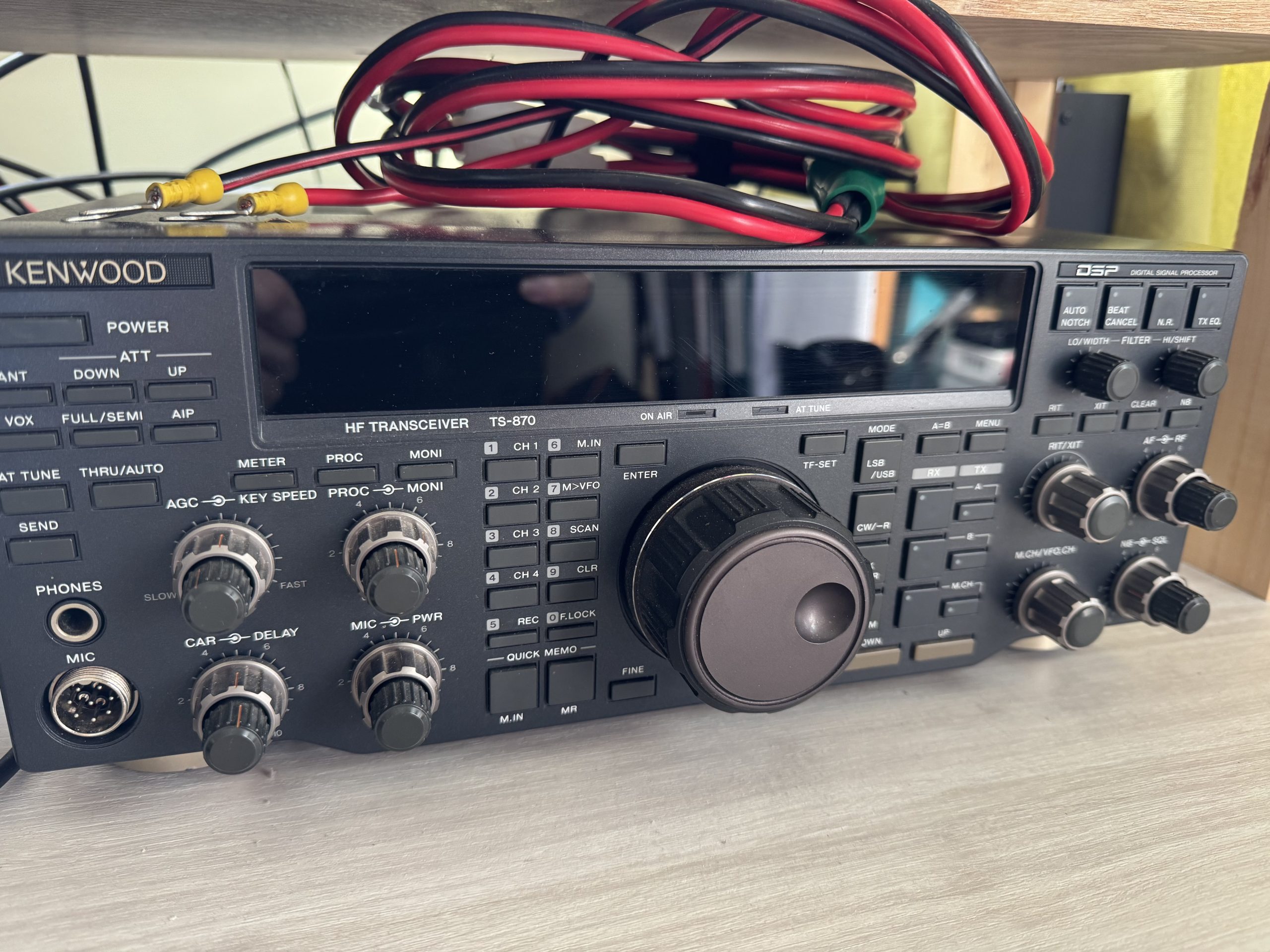

Kenwood TS870 Transceiver
Supplied with MC60 microphone and fist mic
Boxed with Manual & Power lead.
Ideal for someone just starting out on the HF Bands

1.8Mhz to 30Mhz Including WARC Bands
100 W output in SSB, CW, FM, and FSK modes (25 W in AM)
Dual 24-bit, 20 MIPS DSP chips enabling exceptional receiver performance, including over 100 dB out-of-band attenuation with virtually no signal loss.
Advanced noise reduction with Line Enhancer Method (LEM) and Speech Processing/Auto Correlation (SPAC)
Variable IF slope and bandwidth for precise filtering in SSB, CW, FM, and FSK modes.
Dual receive capability and IF Auto-Notch for eliminating interfering carriers.
K1 LogiKey built-in electronic keyer with semi/full break-in and adjustable rise/fall times.
High-speed computer control (57.6 Kbps) via RS-232C (DB9), supporting Windows software.
100 memory channels, programmable function keys, and a full menu system for customisation.

Specifications:
Frequency Stability: ±10 ppm (±0.5 ppm with optional SO-2 TCXO).
Dimensions: 330 × 120 × 334 mm (13 × 4.72 × 13.1 in).
Weight: 11.5 kg (25.35 lbs).
Power Supply: 13.8 V DC, 20.5 A (max transmit), 2 A (receive).
Receiver System: Quadruple conversion superheterodyne with IFs at 73.05 MHz, 8.83 MHz, 455 kHz, and 11.308 kHz.
Sensitivity: As low as 0.13 µV on 1.705–30 MHz (SSB/CW/FSK).
Selectivity: 2.3 kHz (-6 dB), 3.3 kHz (-60 dB) for SSB; 200 Hz (-6 dB), 450 Hz (-60 dB) for CW.

Details

Price £320.00
Purpose Sell
Condition Used (No Box)
Model TS870
City Weymouth

Features

  • No Warranty (Used)
  • HF
  • General Coverage Receiver
  • WARC Bands
